PushRodder™

All-in-one deployment system (rod + depth measurement)

Easy-to-use continuous fiberglass rod, compatible with GyroScout™ and GyroLogic™ Evo

SHORT HOLE APPLICATIONS

GyroLogic

Highly accurate, extremely reliable downhole directional survey tool that can be used in Wireline Gyro Survey and Magnetic Environments. Reference gyro designed for short hole applications. Operates in both wireline and memory mode.

Effortless integration: Ideal for blasting and short holes.

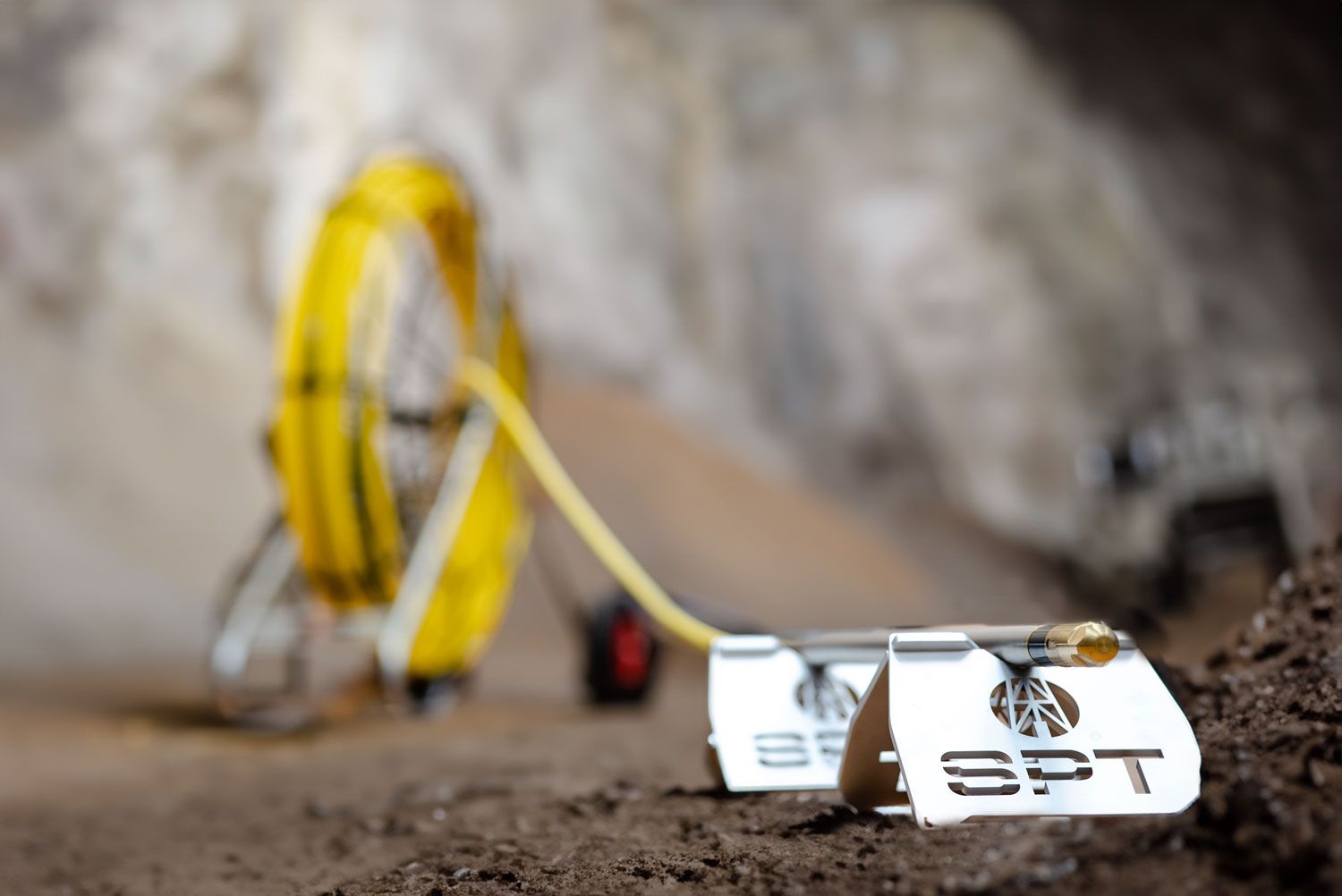

SPT’s Gyro PushRodder is an easy-to-use continuous fiberglass rod, that allows manual deployment of light tools such as GyroScout™ and GyroLogic™.

It has an integral wireless depth counting system, that communicates seamlessly with SPT’s survey software.

Seamlessly perform surveying tasks above and below the surface.

The Gyro PushRodder has fewer movable parts, which results in a more reliable design.

It is equipped with a rechargeable Lithium-Ion battery depth communication module, enabling its use both for surface, as well as underground surveying jobs.

Automated software shows QA/QC data

Our smart software ensures continuity & consistency throughout the operation. Automatically generate detailed pdf reports and easily share among stakeholders. Our data and reports are tamper-proof to ensure the highest standard of quality control.

wireless device

Technical Specifications

Dimensions
Rod Diameter Ø 11 mm (7/16'')
Rod Length 100 m (330 ft)
Rod Material Glass fiber / Polypropylene shell
Weight 39 kg (86 lbs)
Operational Environment
Bluetooth® Range 20 m (65 ft)
Max Working Load 580 kg (1278,6 lbs)
IP Rating IP66
Depth Counting System SPT DepthTracker
Operational Temperature -20°C – +60°C (-4°F – +140°F)
Performance*
Inclination Range 0 – 360°
Depth Accuracy 0.4%
Battery
Battery Type Lithium Ion Rechargeable
Data
Communications Bluetooth®
Export SPT SmartCloud via WIFI or 4G LTE

Automated quality control ensures your projects success

Our products are developed in-house, which means we oversee every aspect of production. We don’t outsource and hope for success, we build internally and expect it. With Stockholm Precision Tools you can trust that every product we develop is of the highest quality thanks to our experienced engineers
