GyroScout™

The lightest gyro in the industry with a 32 mm diameter, integrated, single piece, pressure housing, weighing in at 2.4 kg.

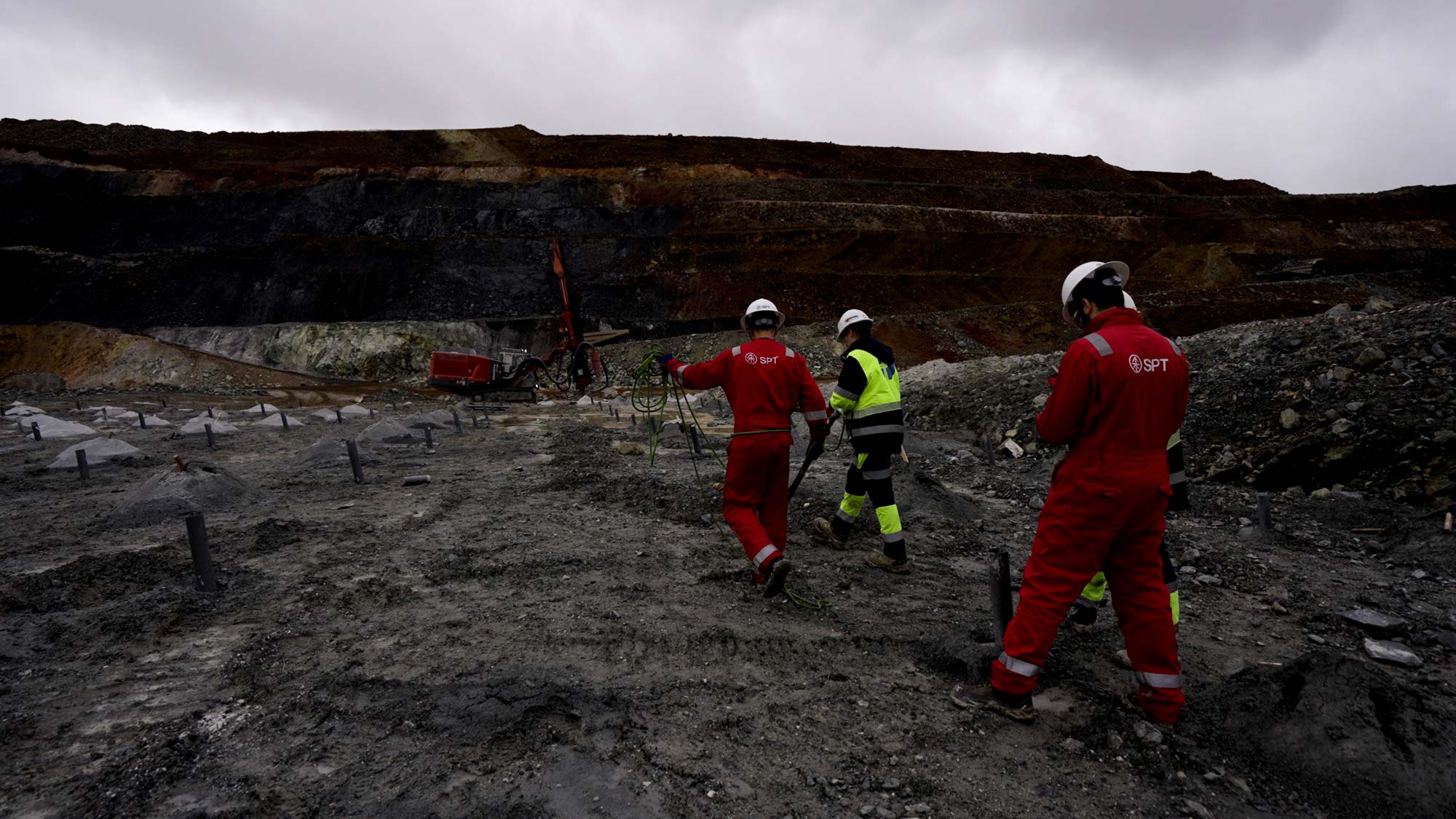

The rugged, ultra-light design can operate at all angles in the toughest conditions making it ideal for blasting operations.

THE SLIMMEST GYRO IN THE MINING INDUSTRY

GyroScout

The lightest gyro in the industry with a 32 mm diameter, integrated, single piece, pressure housing, weighing in at 2.4 kg.

The rugged, ultra-light design can operate at all angles in the toughest conditions making it ideal for blasting operations.

Maximum lightness and maximum accuracy

GyroScout™ is the perfect gyro for low-cost projects without loss of accuracy or reliability.

At 32 mm in diameter and 950 mm in length, it is one of the lightest and most portable gyroscopes on the market. Weighing only 2.4 kg, it minimises operational time and effort.

GyroScout boligrafo 2.1

Simplicity of operation through design

The single piece survey tool is simply linked by Bluetooth to the hand held device for programming and data upload – no additional pressure barrels or connections to unscrew during operations.

A rechargeable long life battery completes the picture, making it a long distance endurance machine.

Automated and intuitive software

The clear and intuitive software includes the ability to export detailed reports in the most commonly used formats in the industry. Data is instantly synchronized in the cloud thanks to its native compatibility with SPT SmartCloud

Technical specifications

Dimensions
Outer Diameter 32 mm (1.25")
Length 950 mm (37.4")
Weight 2.6 kg (5.73 lbs)
Operational Environment
Depth Pressure 2900 psi
Operational Temperature -10°C – +60°C (+14°F – +140°F)
Performance*
Azimuth Accuracy 0.16°
Inclination Accuracy 0.05°
Gravity Toolface Accuracy 0.08°
Typical Positional Accuracy 0.3%**
Azimuth Range 0° – 360°
Inclination Range -90° – +90°
Toolface Range 0° – 360°

* Accuracy quoted on 1σ

** Well profile dependent

Battery
Battery Type Lithium Ion Rechargeable
Operating Time 24 hrs
Data
Survey Report At any interval
Communications Bluetooth®
Export SPT SmartCloud via WIFI or 4G LTE
Export Format PDF, Excel, CSV, LAS, DXF
Graphic Generation 2D, 3D
Handheld Device
Battery 20 hrs (8580 mAh)
IP Rating IP68, IP69K

Automated quality control ensures your projects success

Our products are developed in-house, which means we oversee every aspect of production. We don’t outsource and hope for success, we build internally and expect it. With Stockholm Precision Tools you can trust that every product we develop is of the highest quality thanks to our experienced engineers
