Incorrect Rig Alignment Impacts Accuracy and Increases Costs

Misalignment is one of the most common and costly errors in mining operations. A misaligned rig leads to inaccurate boreholes, downtime, constant adjustments, and decisions based on unreliable data.

Misalignment at Collar Cannot Be Corrected Downhole

Even a few degrees off at the start can result in tens of meters of deviation.

Each misaligned borehole leads to higher resource use, invalid data, and rework that accumulates daily, reducing project profitability.

Accurate Drilling Without Deviation or Rework from Misalignment

Gyro RigAligner™ is the ultimate tool for fast, precise rig alignment. Its advanced technology finds true north and aligns the rig in under 5 minutes, eliminating constant repositioning and drastically reducing downtime.

Speed, Portability, and Precision in the Field

Alignment in Under 5 Minutes

Quickly orients the drill rig without external survey equipment or complex procedures.

North-Seeking Technology

Accurately and reliably finds true north, ensuring a clear initial drilling direction.

Real-Time Results

Continuous survey mode with a wireless handheld delivers instant alignment readings during setup.

Reliable Data with Navibore™

Uses solid-state technology to deliver the most precise rig alignment results on the market.

Portable, Rugged Design

Lightweight and easy to transport, ideal for intensive use in surface or underground operations.

Lower Operational Costs

Prevents inaccurate drilling, rework, and downtime, improving project efficiency.

SmartCloud™ synchronization

WiFi or 4G LTE wireless connectivity for automatic reports and full traceability.

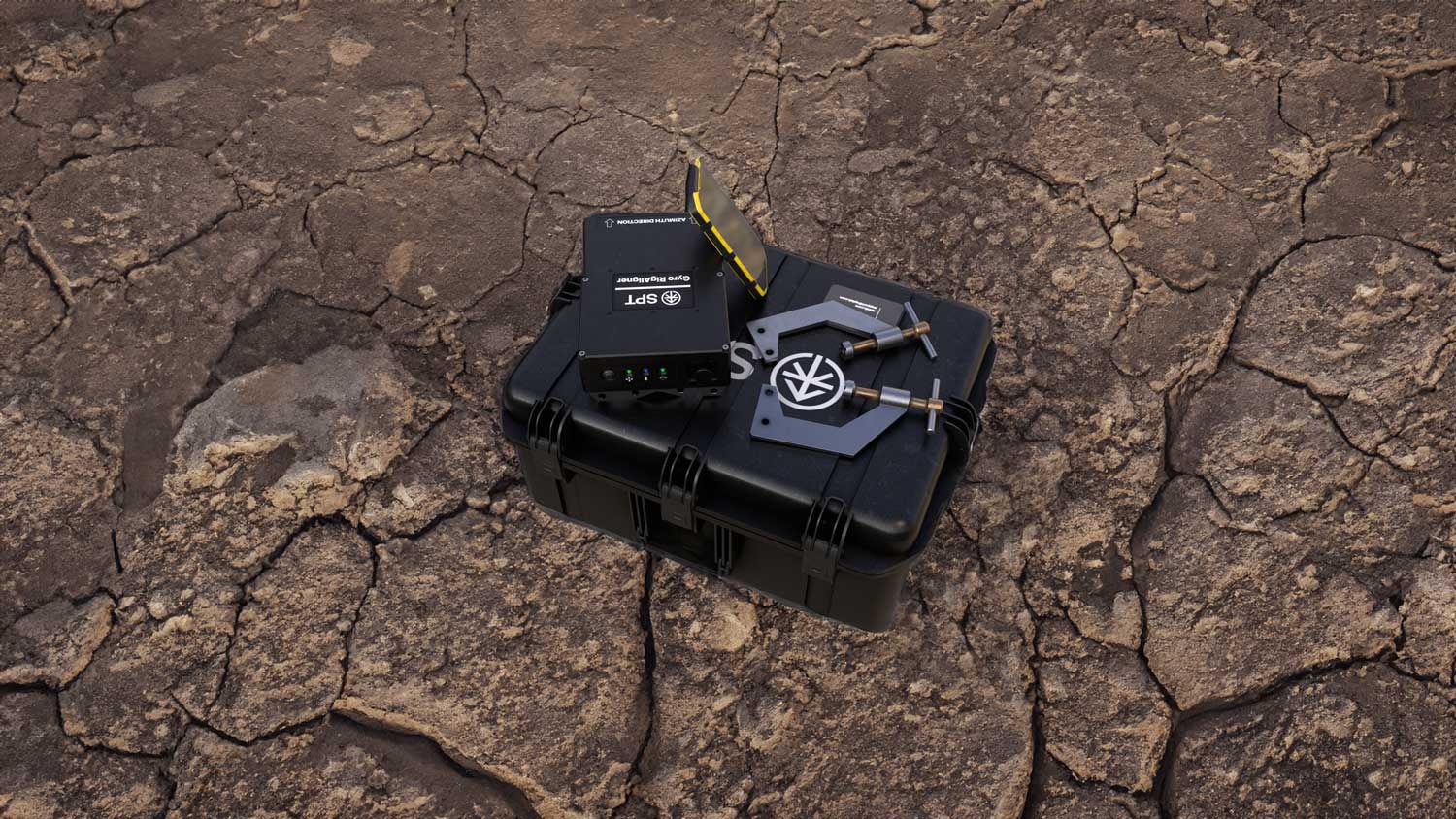

Compact, Accurate, and Easy-to-Use Solution

Gyro RigAligner™ simplifies rig alignment with a portable, accurate, and user-friendly solution.

In under 5 minutes, it finds true north and dip to start drilling without delays.

Continuous Operation

Using its wireless handheld, the operator views real-time data through continuous survey mode, eliminating downtime and repeated adjustments for smoother operations.

Reports from Anywhere

Compact yet rugged, it’s designed for easy transport across job sites, performing reliably both on surface and underground.

Each alignment can be synced with SmartCloud™ for automatic reporting and quality control from the start.

Automatic Cloud Data Sync

With SPT SmartCloud™ , your data is instantly available and accessible from anywhere. Its intuitive design, customizable roles, and full traceability ensure secure and efficient operations.
ure and efficient operations.

Drill Rig Alignment

Directional Survey

Core Orientation

Structural Logging

SmartCloud™

Technical Specifications

Dimensions
Length	242x162x82 mm (9,53x6,38x3,23")
Weight	5.3 kg (11.8 lbs)
Clamps Sizes	57 mm – 117 mm (2.24" – 4.6")

Data
Communications	Bluetooth®
Export

Performance*
Azimuth Accuracy	0.4°
Inclination Accuracy	0.05°
Azimuth Range	0° – 360°
Inclination Range	-90° – +90°

* Accuracy quoted at 1σ

Battery
Battery Type	Lithium Ion Rechargeable
Operating Time	10 hrs

Operational Environment
Continuous Data Output	Applicable
Underground	Applicable
Surface	Applicable
Operational Temperature	-25°C – +60°C (-13°F – +140°F)
Setting Time	<5 min
