GyroGamma™

Combines the precision and accuracy of a north-seeking gyroscope with the depth correlation and lithology determination capabilities of a gamma sensor.

Operates in tandem with GyroMaster™ or independently

THE BEST OF GAMMA TECHNOLOGY IN YOUR MINING OPERATIONS

GyroGamma

Combines the precision and accuracy of a north-seeking gyroscope with the depth correlation and lithology determination capabilities of a gamma sensor.

Operates in tandem with GyroMaster™ or independently

Correlate depth and measure with GyroMaster™

Because it uses the same depth counter for both measurements, GyroGamma eliminates depth offset issues, ensuring the data is as accurate as possible

Saves time and costs

Designed to be operated by the driller thanks to its robust design, with simple and user-friendly interface.

Compatibility with GyroMaster™ and SmartCloud™

With GyroGamma, you can create a single data file for all measurements and instantly upload it to SPT SmartCloud.

This ensures that data is always available, accessible and secure

Technical Specifications

Dimensions
Outer Diameter 42 mm (1.65")
Length (Stand Alone) 1597 mm (62.9")
Length (Tandem GM) 2437 mm (96")
Weight 9.2 kg (20.3 lbs)
Operational Environment
Depth Pressure 7251 psi
Operational Temperature -25°C – +60°C (+14°F – +140°F)
Line Speed Up – 15 m/m (59"/m)
Performance*
Update Rate 1 s
Sampling 1 hz
GR Accuracy 7%
Detector Type CsI(Na)
Battery
Battery Type Lithium Ion Rechargeable
Operating Time 15 hrs
Data
Communications Bluetooth®
Export SPT SmartCloud via WIFI or 4G LTE

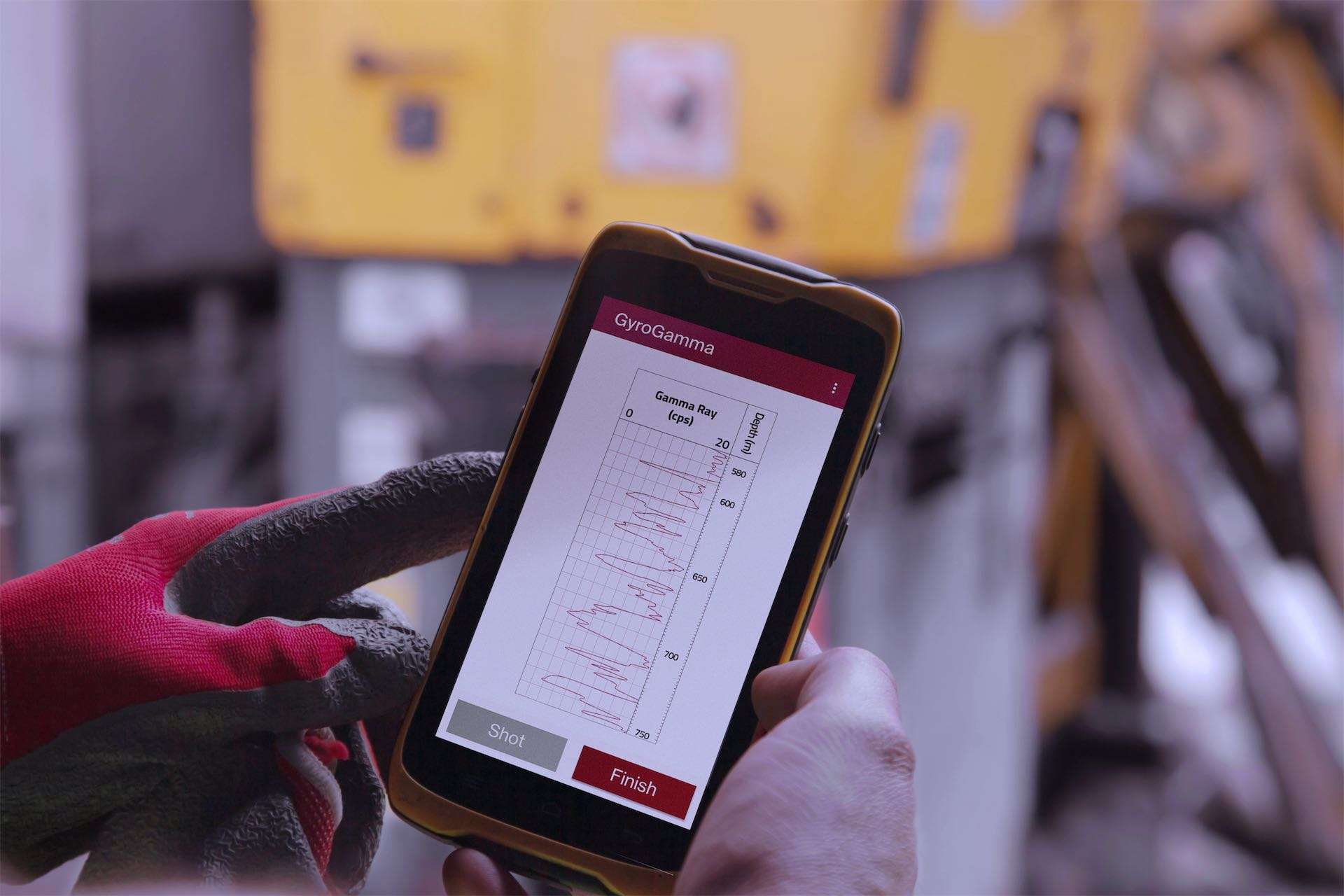

Handheld Device
Batería 20 hrs (8580 mAh)
Protección IP IP68, IP69K

Automated quality control ensures your projects success

Our products are developed in-house, which means we oversee every aspect of production. We don’t outsource and hope for success, we build internally and expect it. With Stockholm Precision Tools you can trust that every product we develop is of the highest quality thanks to our experienced engineers

Connect with us

Learn more about the GyroGamma™ straight from the experts
