Depth Counter

Ensure survey accuracy with precision depth control. Lightweight, compact and easy to use measuring device.

PRECISION DEPTH CONTROL

Depth Counter

Ensure survey accuracy with precision depth control. Lightweight, compact and easy to use measuring device.

Compact and lightweight device for measuring wireline depth

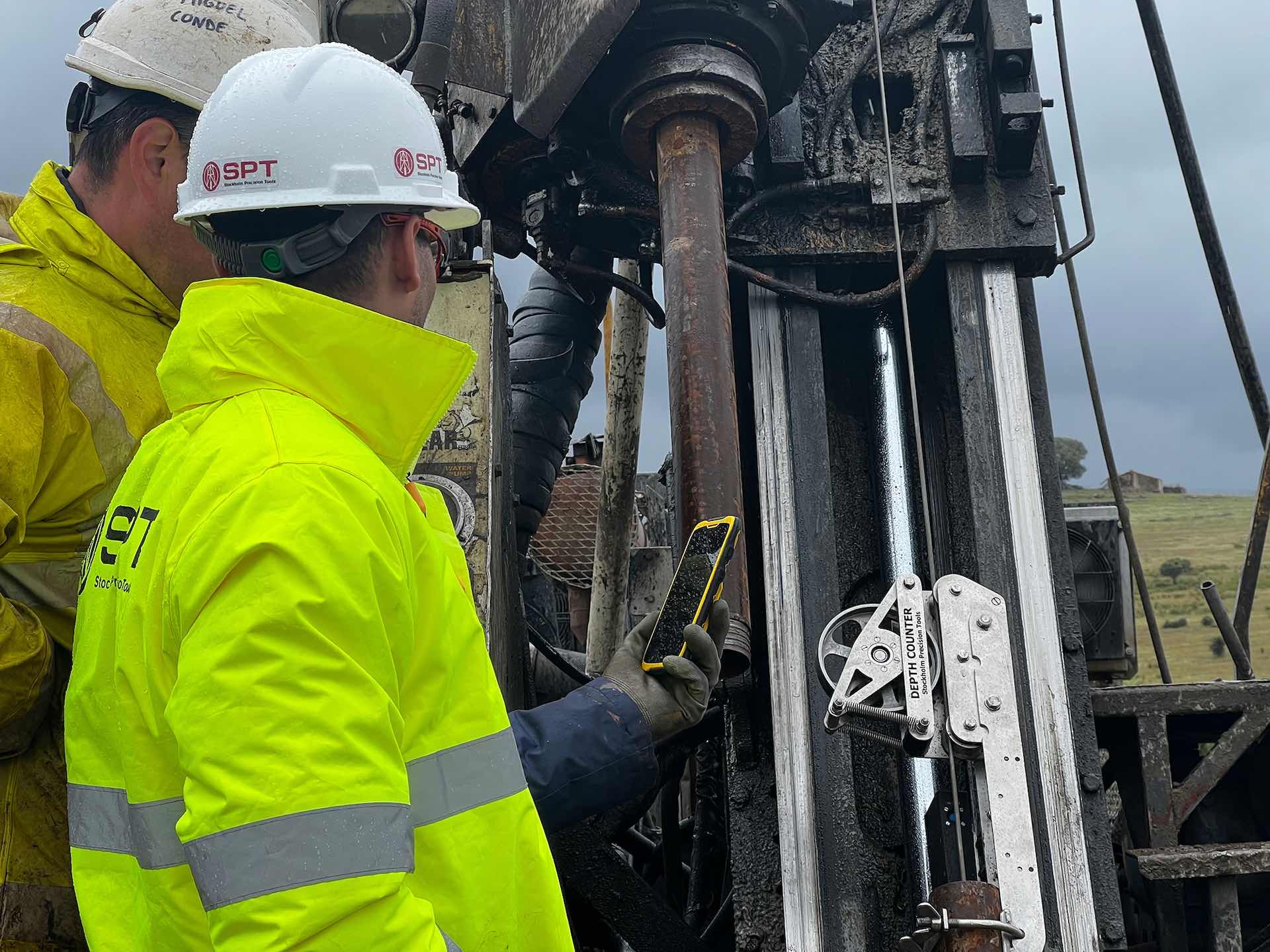

The SPT Optical Depth Counter device is designed to be mounted to the rod of a drilling unit. One of the benefits compared to other measuring devices is that it measures depth on wireline cables from 4mm to 10mm (0.15” to 0.39”). This device can work on both open and cased hole, using a tripod or clamping device.
Depth Counter
Play Video about Thumbnail Depth Counter EN

Dual spring-loaded measuring platform

This device measures the amount of wireline moving to and from the borehole. The measuring wheel is coupled to an encoder that transmits electrical signals via Bluetooth® to the handheld device.

Engineered for strength, precision measurement and durability.

Long-range wireless connection

The SPT Optical Depth Counter integrates perfectly into any SPT suite of mobile applications. Utilizing our long-distance Bluetooth® connection of up to 20m, work can be performed safely in any environment. Real-time data is automatically transferred and incorporated into the SPT logging software and the SPT SmartCloud™ as well.

wireless device

Technical Specifications

Dimensions
Dimensions 900x500x400 mm (35.43x19.69x15.75")
Weight 9 kg (19.8 lbs)
Operational Environment
Bluetooth® Range 20 m (65 ft)
Input Encoder Data Pushpull, open drain, open collector
Driller Deployable Yes
Operational Temperature -20°C – +60°C (-4°F – +140°F)
Performance*
Depth Accuracy 0.1% of measured depth
Battery
Operating Time 12 hrs
Data
Communications Bluetooth®
Export SPT SmartCloud via WIFI or 4G LTE

Automated quality control ensures your projects success

Our products are developed in-house, which means we oversee every aspect of production. We don’t outsource and hope for success, we build internally and expect it. With Stockholm Precision Tools you can trust that every product we develop is of the highest quality thanks to our experienced engineers
